DU8395Z

High performance laser projector with built-in edge-blending for large venues

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

The DU8395Z is a bright and robust 15,000 lumens, WUXGA laser projector with a 3,000,000:1 dynamic contrast ratio for clear, crisp, and bright projection. This projector comes with edge-blending and warping technology, motorized lens shift/ focus/zoom, and lens position memory for easy installation. Designed for ProAV rental, staging, and large venues, the DU8395Z includes PIP/PBP support, 360-degree and portrait projection, 24/7 operation capability, and optional lenses.

Key Features

Building-in Edge Blending

The DU8395Z features edge blending capability. Multiple projectors simultaneously project a combined image for a stunning display and seamless image on large displays.

Support Supports 3G-SDI & HDBaseT™ Connectivity

The DU8395Z has built-in 3G-SDI and HDBaseT™ interfaces for long distance signal transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation, saving time and costs.

Zoom, Focus, Lens Shift, and Memory

The DU8395Z comes with powered zoom, focus, and lens shift (horizontal/vertical) for easy adjustment and positioning flexibility. Lens Positioning Memory also offers quick recall of user-defined lens positions (focus, zoom, and lens shift) for easy setup to ensure perfectly proportioned images.

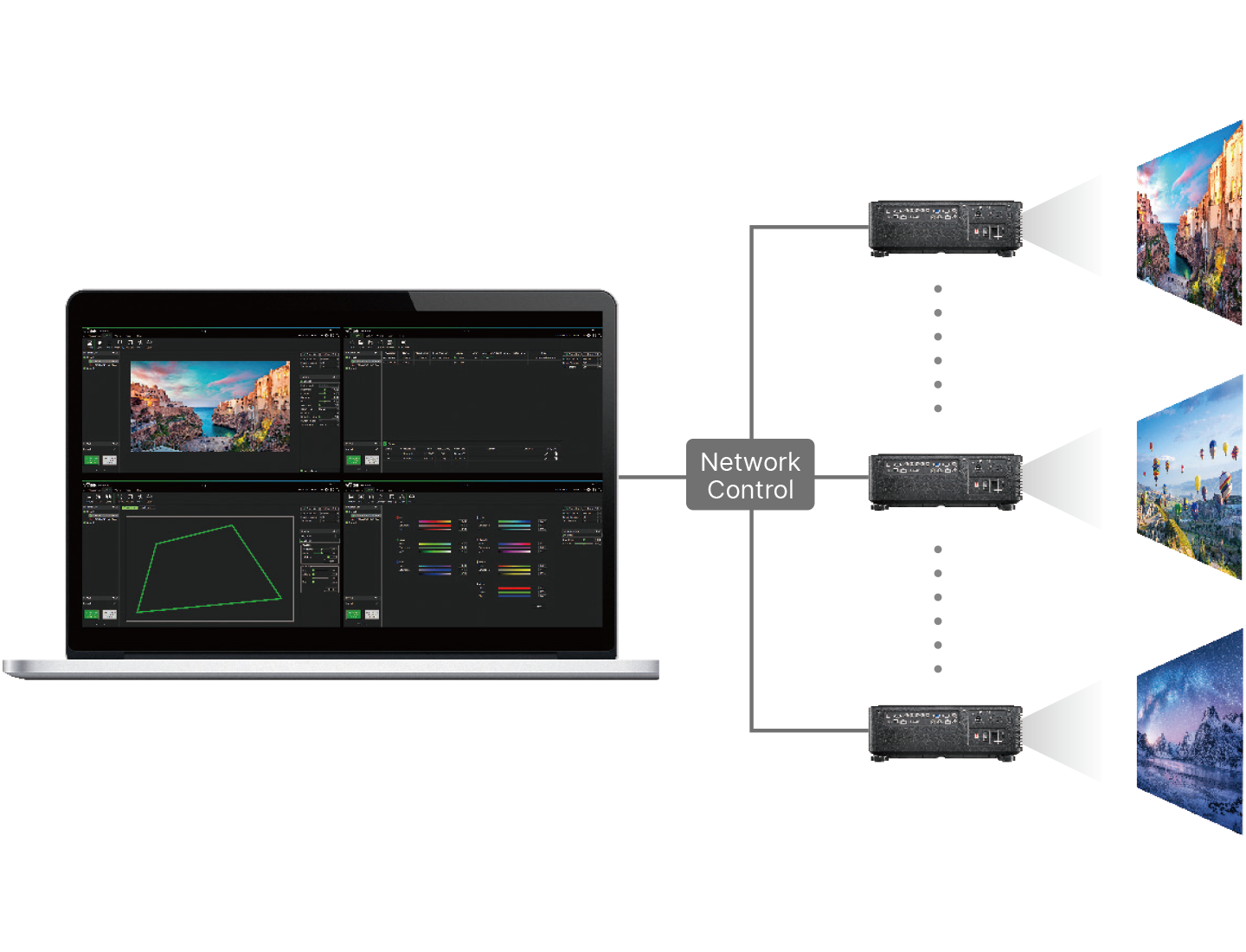

PJ-Control Tool

Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.

Picture-in Picture / Picture-by-Picture

The DU8395Z features Picture-in-Picture and Picture-by-Picture modes. Signals can be delivered from two different digital input sources at the same time.

Water Cooling System

Vivitek’s DU8395Z laser projector features a novel water-cooling system that can dissipate heat away from the laser engine to provide exceptionally cool, stable, and silent operation.

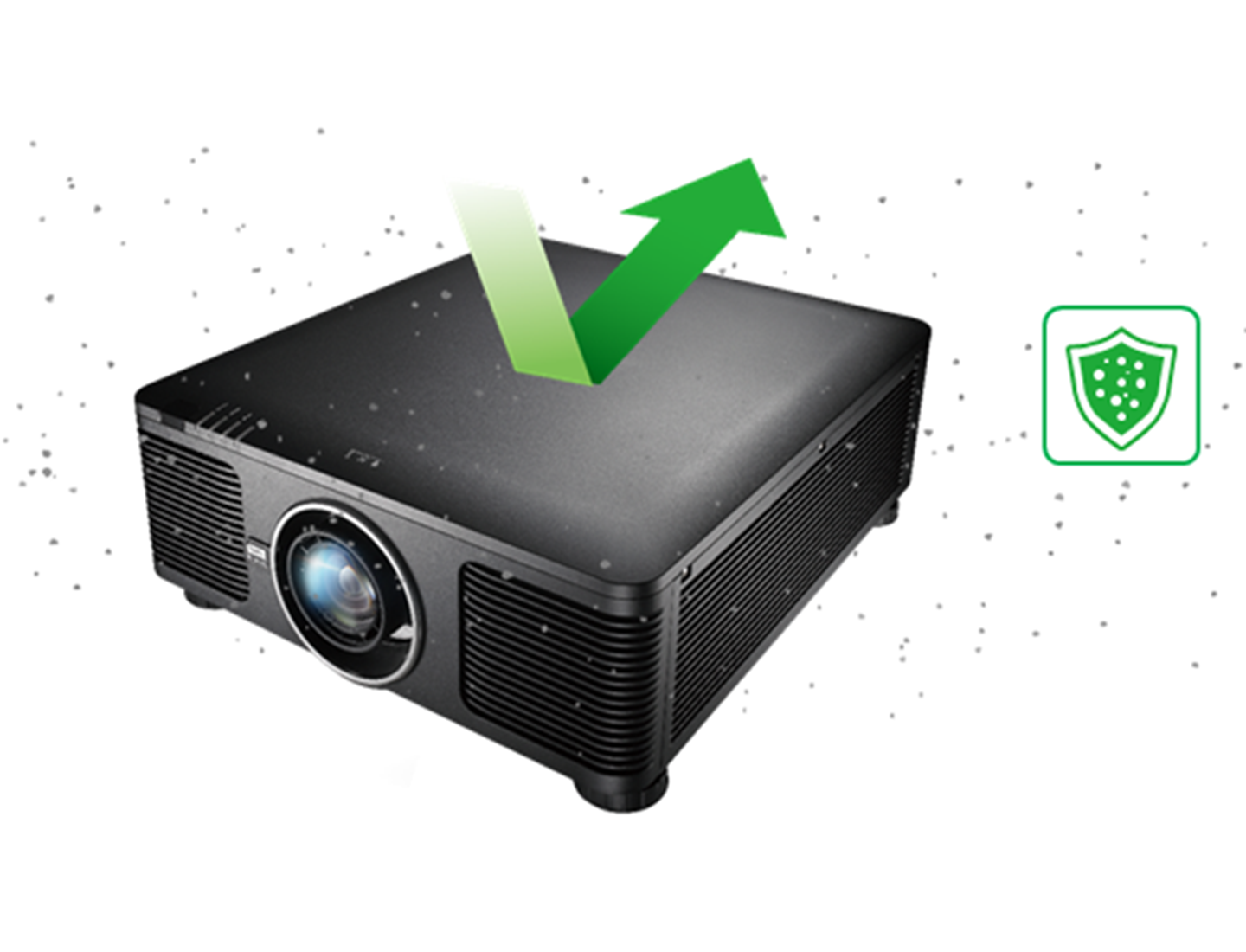

IP6X Sealed Optical Engine Certified Design

The DU8395Z complies with high standards for protection against dust, ensuring consistent brightness over time.

Specifications

Display

Projection System

1-Chip DLP™ 0.67 inch

Resolution

WUXGA (1920 x 1200)

Light Source

Laser

Optics

Brightness

15,000 lm

Brightness Uniformity

90%

Contrast Ratio

1,000:1 (Native) / 10,000:1 (Dynamic) / 3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Optional (D88/D86 Lenses)

Zoom Ratio

Base On Lens Spec

Lens Throw Ratio

D88 Lenses: 0.38:1 / 0.76:1 / 0.75~0.93:1 / 1.25~1.79:1 / 1.73~2.27:1 / 2.22~3.67:1 / 3.58~5.38:1 / 5.31~8.26:1

Lens Shift - Horizontal (Full Image Width)

+10% ~ -10%

Offset (Full Image Width)

+50% ~ -0%

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

I/O Terminal

HDMI

1.4a x2

DisplayPort

N/A

SDI

In x1 / Out x1

DVI-D

YPbPr

N/A

D-Sub

In x1 / Out x1

3D Sync

In x1 / Out x1

RJ45

HDBaseT x1, LAN x1

RS-232

In x1

Wire Remote

In x1

Speaker

N/A

USB

N/A

12V Trigger (mini Jack)

5 BNC

Audio

N/A

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

1,539W

Standby Power

< 0.5W (Network Off)／< 6.0W( Network On)

Acoustic Noise ±5%

Normal: 40dB

Dimension ±2%

580 x 500 x 205 mm

Weight ±1kg

30 kg

3D Display

Active / Passive

24x7 Operation

Yes

Dust Proof*4

IP6X

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Documentation

Flyer

Download

User Manual

Download

Accessories

VWD-01

VWD-01 is a Full HD wireless display receiver accessory for support all of Vivitek projectors

Download

D88-UWZ01

Throw ratio: 0.75-0.93:1

D88-WF18501

Throw ratio: 0.76:1

D88-WZ01

Throw ratio: 1.25-1.79:1

D88-STD01

Throw ratio: 1.73-2.27:1

D88-SMLZ01

Throw ratio: 2.22-3.67:1

D88-LOZ101

Throw ratio: 3.58-5.38:1

D88-LOZ201

Throw ratio: 5.31-8.26:1

D88-UST01B

Throw ratio: 0.38:1
