Vivitek

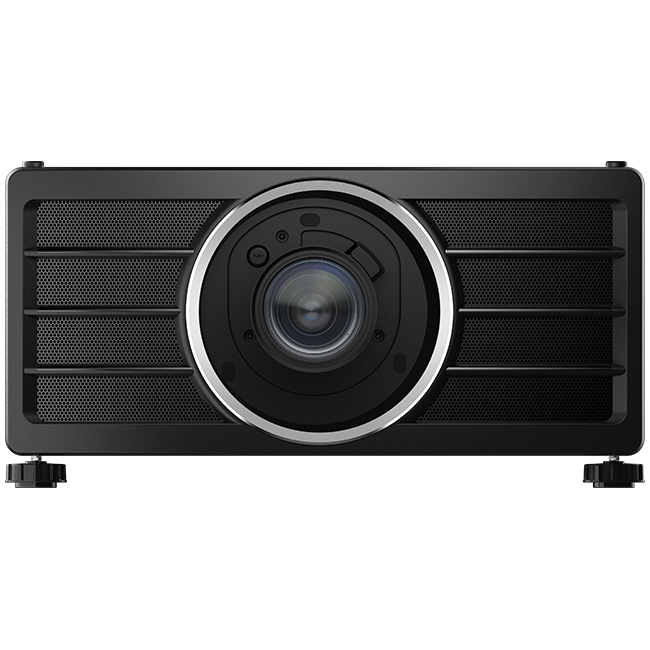

DU9055Z

Ultra-high brightness flagship laser projector

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

The DU9055Z is an ultra-high brightness flagship laser projector. Compared with projectors of the same level, it is the brightest, small in size, light in weight of only 45 kg and very easy to install. This series has built-in edge blending, geometric and auto-color uniformity correction, provides a variety of motorized lens options from throw ratio 0.38:1 to 10.3:1. and the lens positioning memory to meet any installation environments such as ProAV, stage and outdoor mapping applications. This series also supports 360-degree and Portrait projection, continuous 24/7 operation, and an IP6X sealed optical engine to eliminate maintenance costs, making its brightness and color uniformity constant and running up to 30,000 hours.

Key Features

Dual Laser Technology

With Vivitek’s latest dual laser technology, DU9055Z features high brightness up to 24,000 lumens and a high 3,000,000: 1 contrast ratio to create the most amazing picture performance.

Ultra-High Efficiency

The DU9055Z uses the latest laser light source technology to enhance brightness, featuring the lowest power consumption and high efficiency in the market. Compared to previous projectors, this series has saved up to 23% of power consumption.

Building-in Edge Blending

The DU9055Z features edge-blending capability. Multiple projectors simultaneously project a combined image for a stunning display and seamless image on large displays.

Building-in Geometric Correction

The geometric correction function of the DU9055Z can provide highly precise image correction and adjustment through the grid, making installation more flexible.

Lens Position Memory

The DU9055Z comes with powered lens shift (horizontal / vertical) for easy adjustment and positioning flexibility. Lens Positioning Memory also offers quick recall of user-defined lens positions (lens shift) for easy setup to ensure perfectly proportioned images.

24/7 Operation

Vivtek’s laser light source is good for 30,000 hours of operation in Eco Mode and support continuous 24/7 operation. It delivers high stability and reliability for commercial applications.

High Standard Anti-Dust Protection

The optical system, from the laser light source to lens is completely sealed and rated IP6X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.

Rental Mode

After rental agents installed the projectors for customers, rental period can be set, and the screen image will be automatically blocked when the period expires.

Specifications

Display

Projection System

1-Chip DLP™ 0.96 inch

Resolution

WUXGA (1920 x 1200)

Light Source

Dual Laser Technology

Optics

Brightness

24,000 lm

Brightness Uniformity

90%

Contrast Ratio

1,500:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Optional (D98\D99 Lenses)

Zoom Ratio

Base On Lens Spec

Lens Throw Ratio

0.38:1 / 0.9~1.20:1 / 1.2~1.56:1 / 1.5~ 2.0:1 / 2.0~4.0:1 / 4.0~7.0:1

Lens Shift - Horizontal (Full Image Width)

+15% ~ -15%

Offset (Full Image Width)

+50% ~ -50%

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

I/O Terminal

HDMI

2.0 x2

DisplayPort

N/A

SDI

12G-SDI In x1 / Out x1

DVI-D

YPbPr

N/A

D-Sub

N/A

3D Sync

3D SYNC IR x1 / SYNC In x1 / SYNC Out x1

RJ45

HDBaseT x1, LAN x1

RS-232

In x1

Wire Remote

In x1 / Out x1

Speaker

10W x2

USB

Type A*1 (Power Only 5V/2A) x1

12V Trigger (mini Jack)

5 BNC

N/A

Audio

N/A

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

1400W@220Vac(Normal) \ 1050W@220Vac (Eco)

Standby Power

< 1.0W (Network Off)／< 6.0W( Network On)

Acoustic Noise ±5%

Normal 47dB / Eco 45dB

Dimension ±2%

676.6 x 598.8 x 270mm

Weight ±1kg

45.4 kg

3D Display

Active

24x7 Operation

Yes

Dust Proof*4

IP6X (Óptico Engine)

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Documentation

Flyer

Download

User Manual

Download

Accessories

VWD-01

VWD-01 is a Full HD wireless display receiver accessory for support all of Vivitek projectors

Download

D98-UST01

0.38

D99-0912

Throw ratio: 0.9~1.2 : 1

D99-1215

Throw ratio: 1.2~1.56 : 1

D99-1520

Throw ratio: 1.5~2.0 : 1

D99-2040

Throw ratio: 2.0~4.0 : 1

D99-4070

Throw ratio: 4.0~7.0 : 1

D98-69103

Throw ratio: 6.9~10.3:1
