Vivitek

DU4871Z

An excellent color performance laser projector ideal for higher education and conference rooms

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

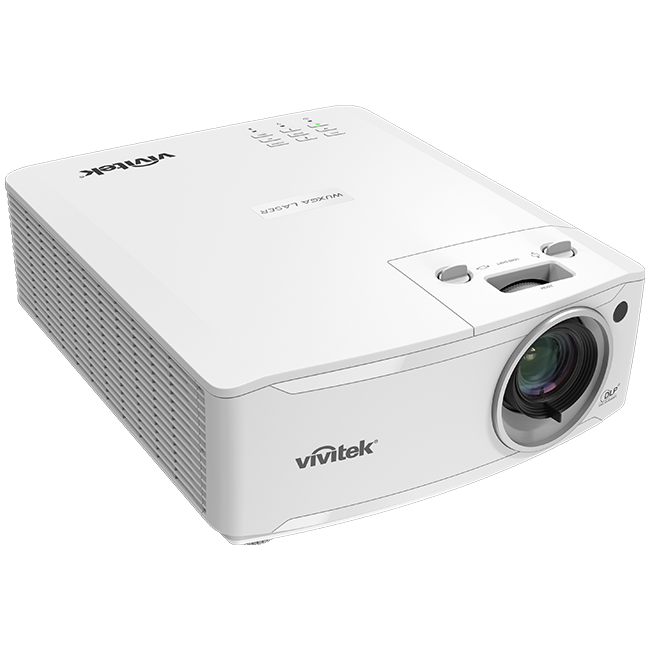

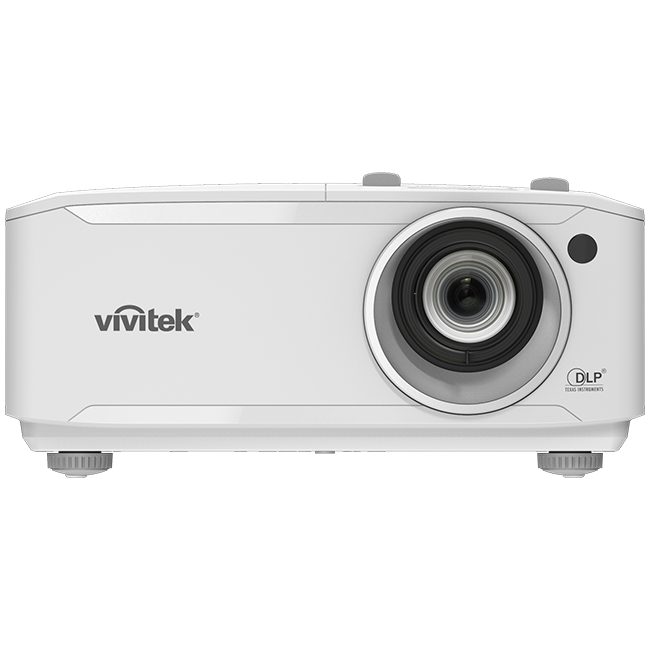

With a high brightness of 7,000 lumens, the DU4871Z is a WUXGA laser projector with diverse connectivity options and is suitable for large spaces, even with high ambient lighting, such as lecture halls or conference rooms. It offers the next generation of advanced laser light source technology and features vibrant true-to-life colors, high brightness, and high contrast to deliver excellent color performance. Designed to meet different installation environments, the DU4871Z has environmentally friendly lamp-free design and features 360° and portrait projection for stable and high-quality projection.

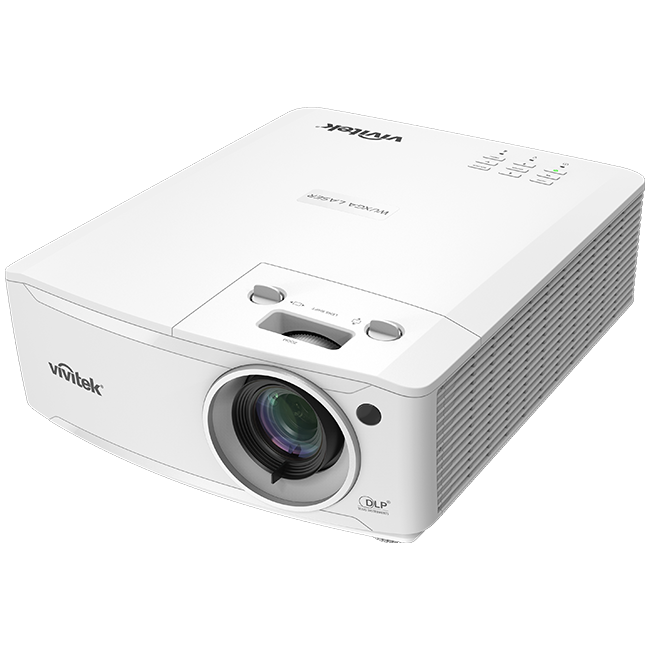

DU4871Z DU4871Z

Key Features

Key Features

Brightness and Color Performance

The DU4871Z features 7,000 lumens of high brightness, 3,000,000: 1 contrast ratio and offers the next generation of advanced vivid color technology to deliver a perfect image display.

1.65X Zoom Range

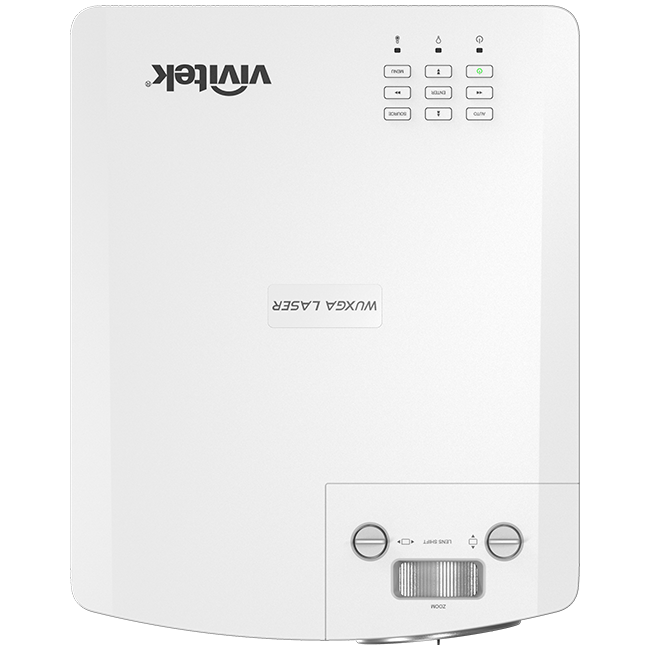

The DU4871Z is equipped with a 1.65X big zoom optical lens and supports a throw ratio of 1.15 to 1.9:1. It can provide flexible projection distance installation in any challenging environments. With the horizontal/ vertical lens shift, even if the projector cannot be placed in the middle position, it can be flexibly adjusted to provide a perfect ratio image.

Support HDBaseT™ Connectivity

The DU4871Z has built-in HDBaseT™ interface support for the transmission of high-quality audiovisual content over standard CAT5e/6 LAN cabling. This allows the projector to be placed up to 100 m from the source with low-cost cabling.

PJ-Control Tool

Vivitek PJ-control is a control software for Vivitek projector. This software tool can manage multiple projectors to control viewing options, settings, scheduling, and adjust display features by the network.

Flexible Installation

Supports 360° no limitation on projection angle, vertical / horizontal keystone, and 4-corner geometric adjustment, allowing for almost unlimited mounting flexibility.

IP6X Optical Engine Certified Design

The DU4871Z complies with high standards for anti-dust protection, which ensures consistent brightness over time.

Eco Friendly

All components and materials in Vivitek’s projectors follow the green guidelines of RoHS. The projector is used laser light source for up to 30,000 hours (Eco Mode), guaranteeing a long service life which greatly reduces energy consumption and maintenance costs.

Specifications

Specifications

Display

Projection System

1-Chip DLP™ 0.67 inch

Resolution

WUXGA (1920 x 1200)

Light Source

Laser

Optics

Brightness

7,000 lm

Brightness Uniformity

85%

Contrast Ratio

3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Fixed

Zoom Ratio

1.65x

Lens Throw Ratio

1.15~1.9 : 1

Lens Shift - Horizontal (Full Image Width)

+2.5% ~ -2.5%

Offset (Full Image Width)

+110% ~ +125%

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

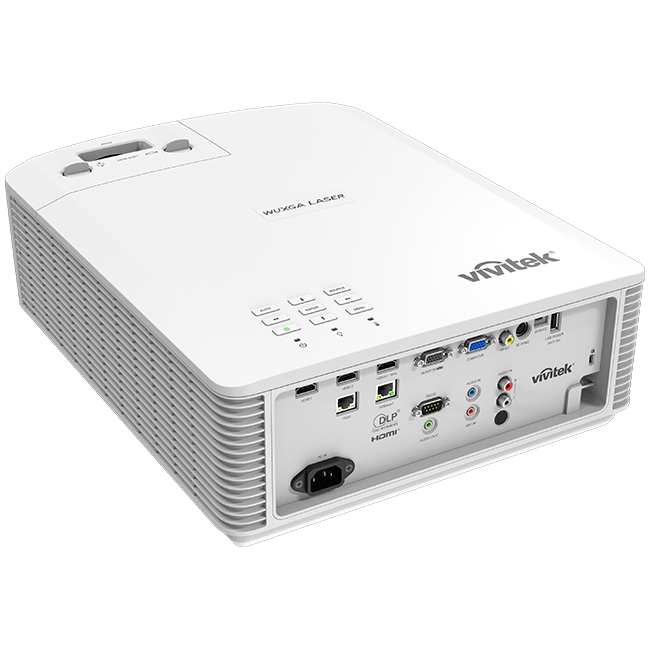

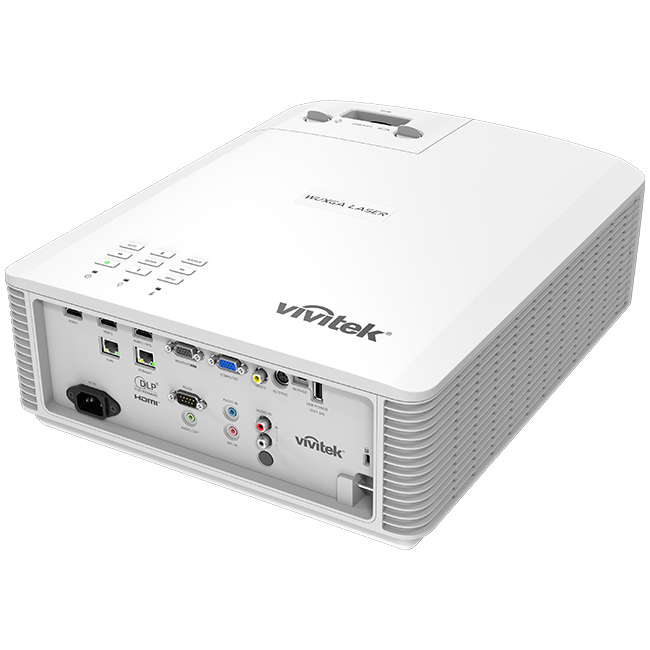

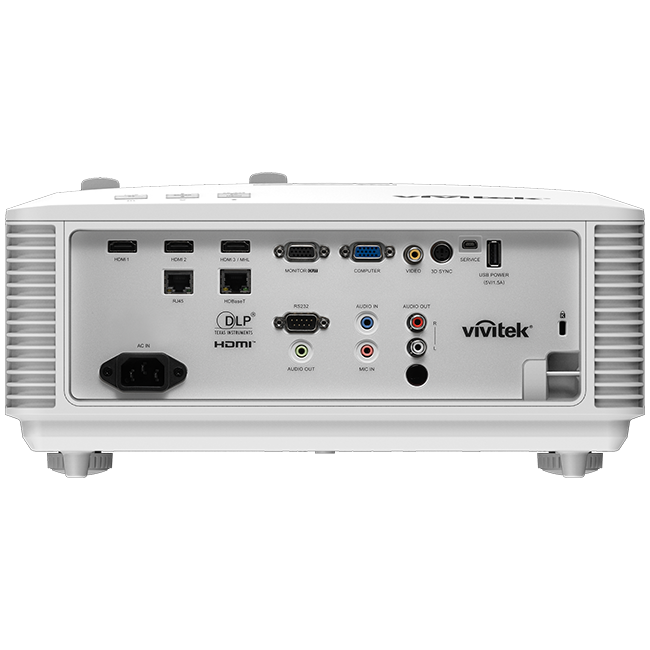

I/O Terminal

HDMI

1.4a x3 (one with MHL)

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

In x1 / Out x1

3D Sync

Out x1

RJ45

HDBaseT x1, LAN x1

RS-232

In x1

Wire Remote

N/A

Speaker

5W x2

USB

Type A (5V/1.5A power only) x1

12V Trigger (mini Jack)

N/A

5 BNC

N/A

Audio

Audio-In (RCA) x1 / Audio-In (Mini-Jack) x1 / MIC-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1

System

Power Supply

AC 110-240V 50/60Hz

Power Consumption ±5%

530W (Normal) / 330W (Eco)

Standby Power

< 0.5W (Network Off)/< 2.0W( Network On)

Acoustic Noise ±5%

Normal 37dB / Eco 33dB

Dimension ±2%

360 x 451 x 166 mm

Weight ±1kg

10.5 kg

3D Display

Active

24x7 Operation

Yes

Dust Proof*4

IP5X

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

 Brightness measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Contrast Ratio base on Full On/Off
Light Source Life: Time until light output declines to 50 %, Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
Altitude: When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.
