Vivitek-Products-DK8155Z

Vivitek

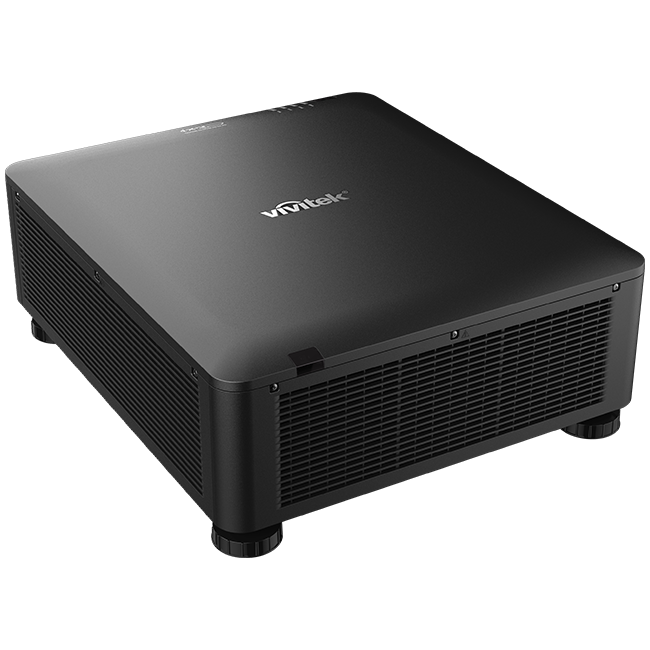

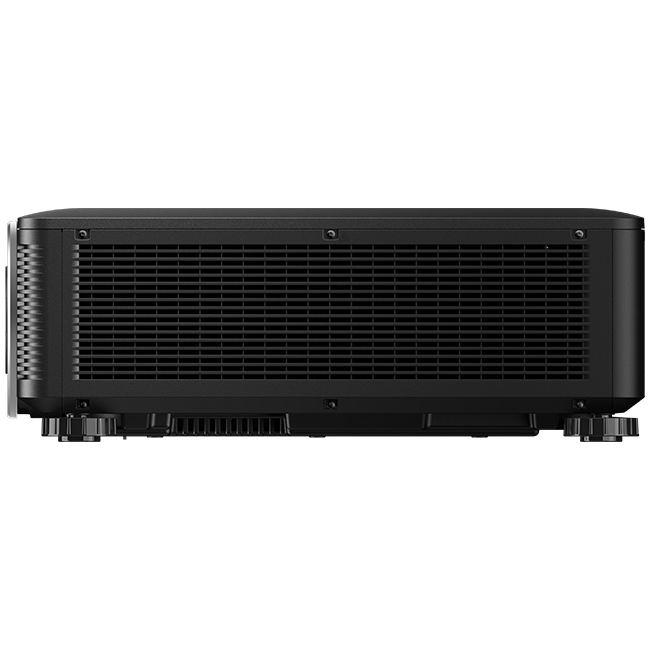

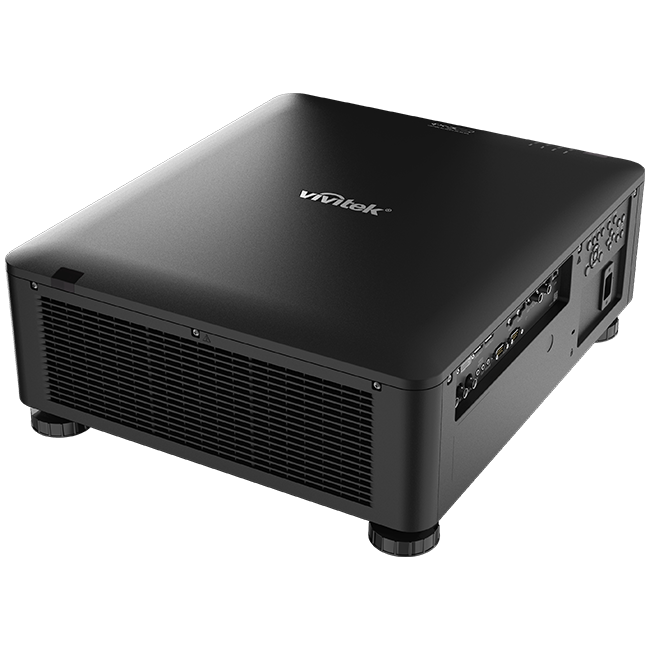

DK8155Z

The lightest dual laser projectors for Large Venues

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

With Vivitek’s latest dual laser technology, the all-new DK8155Z delivers 15,000 lumens of brightness high 3,000,000:1 contrast ratio and true 4K image quality to show every detail. This series is built-in geometric correction tool, edge-blending and warping, and lens position memory for easy installation. Designed for large venues, this series projector offers eight motorized lens options, 360-degree and portrait projection, 24/7 continuous operation capability for ultimate flexibility.

Key Features

Dual Laser Technology

With Vivitek’s latest dual laser technology, DK8155Z features high brightness up to 15,000 lumens and a high 3,000,000: 1 contrast ratio to create the most amazing picture performance.

Native 4K Resolution

The DK8155Z offer exceptional picture clarity in 4K resolution with support 16:10 aspect ratio and up to 15,000 lumens brightness to deliver outstanding detail and stunning 8.3 million pixels visuals.

Building-in Edge Blending

The DK8155Z features edge-blending capability. Multiple projectors simultaneously project a combined image for a stunning display and seamless image on large displays

Building-in Geometric Correction

The geometric correction function of the DK8155Z can provide highly precise image correction and adjustment through the grid, making installation more flexible.

PJ-Control: Auto-correction

Vivitek’s PJ-Control software is specially designed for Vivitek projectors. Its Smart assist supports automatic correction functions which can manage multiple projectors at the same time and support warping, blending, stacking and auto color correction through mobile phones with ViviCamm App.

Constant Input: Auto Switching

The DK8155Z supports an auto switching constant input that provides a backup source for Vivitek projector. When the live event display image is lost signal, the projector will automatically switch to the backup source.

Constant Brightness

With built-in color sensor technology, these projectors can automatically adjust the lighting to maintain constant and stable brightness over a long period of time.

Specifications

Display

Projection System

1-Chip DLPTM 0.8 inch

Resolution

4K+ (3840 x 2400)

Light Source

Dual Laser Technology

Optics

Brightness

15,000 lm

Brightness Uniformity

90%

Contrast Ratio

1,300:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal) / 30,000 hrs (Eco)

Lens Type

Optional (D89 Lenses)

Zoom Ratio

Base On Lens Spec

Lens Throw Ratio

"D89 Lenses: T/R 0.31~0.33、T/R 0.55~0.75、T/R 0.74 - 1.08、T/R 1.05 -1.41、T/R 1.4- 2.11、T/R 2.1-4.0、T/R 3.0-4.52 、 T/R 4.46 -6.94"

Lens Shift - Horizontal (Full Image Width)

+60% ~ -60%

Offset (Full Image Width)

+20% ~ -20%

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

I/O Terminal

HDMI

2.0 x2

DisplayPort

SDI

12G-SDI In x1 / Out x1

DVI-D

N/A

YPbPr

N/A

D-Sub

N/A

3D Sync

N/A

RJ45

HDBaseT x1, LAN x1

RS-232

In x1

Wire Remote

In x1 / Out x1

Speaker

N/A

USB

Type A*1 (Power Only 5V/2A) x1

12V Trigger (mini Jack)

5 BNC

N/A

Audio

N/A

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

1024W@100Vac,990W@240Vac (Normal Mode)

Standby Power

"< 0.5W (Network Off), < 3.0W( Network On)"

Acoustic Noise ±5%

Normal 40dB / 39dB

Dimension ±2%

500 x 591 x 216 mm

Weight ±1kg

29.4kg

3D Display

Active

24x7 Operation

Yes

Dust Proof*4

IP6X (Óptico Engine)

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Documentation

Flyer

Download

User Manual

Download

Accessories

VWD-01

VWD-01 is a Full HD wireless display receiver accessory for support all of Vivitek projectors

Download

D89-UST01

Throw ratio: 0.31~0.33 : 1

D89-UWZ01

Throw ratio: 0.55~0.75 : 1

D89-UWZ02

Throw ratio: 0.74~1.08 : 1

D89-WZ01

Throw ratio: 1.05~1.41 : 1

D89-STD01

Throw ratio: 1.4~2.11 : 1

D89-SMLZ01

Throw ratio: 2.1~4.0 : 1

D88-LOZ101

Throw ratio: 3.0~4.52 : 1

D88-LOZ201

Throw ratio: 4.46~6.94 : 1
