Vivitek

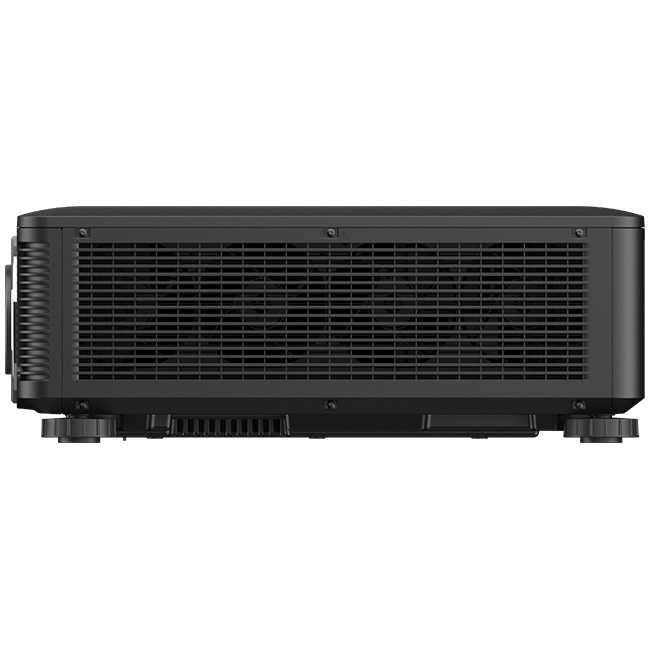

DK10000Z

4K-UHD large venue laser projector with edge-blending

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

The DK10000Z is a professional 4K-UHD laser projector with edge-blending and warping technology for large venue applications. This 4K projector can deliver 10,000 lumens high brightness and 3,000,000:1 dynamic contrast ratio fort an amazing image quality. To meet all installation requirements, the DK10000Z supports eight motorized lens with lens position memory, 3G-SDI and HDBaseT connectivity, and 360-degree and portrait projection for maximum installation flexibility.

Key Features

Building-in Edge Blending

The DK10000Z features edge blending capability. Multiple projectors simultaneously project a combined image for a stunning display and seamless image on large displays.

4K-UHD Resolution

With Texas Instruments’ single chip 4K-UHD XPR technology, the DK10000Z offers exceptional picture clarity in 4K-UHD resolution and up to 10,000 lumens brightness to deliver outstanding detail and stunning 8.3 million pixels visuals on the screen.

Lens Position Memory

The DK10000Z comes with powered zoom, focus and lens shift (horizontal / vertical) for easy adjustment and positioning flexibility. Lens Positioning Memory also offers quick recall of user-defined lens positions (focus, zoom and lens shift) for easy setup to ensure perfectly proportioned images.

Support Supports 3G-SDI & HDBaseT™ Connectivity

The DK10000Z has built-in 3G-SDI and HDBaseT™ interfaces for long distance signal transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation, saving time and costs.

Picture-in Picture / Picture-by-Picture

The DK10000Z features Picture-in-Picture and Picture-by-Picture modes. Signals can be delivered from two different digital input sources at the same time.

Water Cooling System

Vivitek’s DK10000Z features a novel cooling system based on three components: Liquid, Air and Thermoelectric (TEC) cooling to reduce and dissipate heat from critical components to ensure stab

IP6X Sealed Optical Engine Certified Design

The optical system, from the laser light source to lens is completely sealed and rated IP6X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.

Specifications

Display

Projection System

1-Chip DLP™ 0.66 inch

Resolution

4K-UHD (3840 x 2160)

Light Source

Laser

Optics

Brightness

10,000 lm

Brightness Uniformity

90%

Contrast Ratio

1,000:1 (Native) / 6,000:1 (Dynamic) / 3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Optional (D88/D86 Lenses)

Zoom Ratio

Base On Lens Spec

Lens Throw Ratio

D88 Lenses: 0.38:1 / 0.76:1 / 0.75~0.93:1 / 1.25~1.79:1 / 1.73~2.27:1 / 2.22~3.67:1 / 3.58~5.38:1 / 5.31~8.26:1

Lens Shift - Horizontal (Full Image Width)

+10% ~ -10%

Offset (Full Image Width)

+50% ~ -0%

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

I/O Terminal

HDMI

2.0 x2

DisplayPort

N/A

SDI

In x1 / Out x1

DVI-D

N/A

YPbPr

D-Sub

In x1 / Out x1

3D Sync

In x1 / Out x1

RJ45

HDBaseT x1, LAN x1

RS-232

In x1

Wire Remote

In x1

Speaker

N/A

USB

N/A

12V Trigger (mini Jack)

5 BNC

N/A

Audio

N/A

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

1,350W

Standby Power

< 0.5W (Network Off)／< 3.0W( Network On)

Acoustic Noise ±5%

Normal: 43dB / Eco: 41dB

Dimension ±2%

580 x 500 x 205 mm

Weight ±1kg

30 kg

3D Display

Active / Passive

24x7 Operation

Yes

Dust Proof*4

IP6X

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Documentation

Flyer

Download

User Manual

Download

Accessories

VWD-01

VWD-01 is a Full HD wireless display receiver accessory for support all of Vivitek projectors

Download

D88-UWZ01

Throw ratio: 0.75-0.93:1

D88-WF18501

Throw ratio: 0.76:1

D88-WZ01

Throw ratio: 1.25-1.79:1

D88-STD01

Throw ratio: 1.73-2.27:1

D88-SMLZ01

Throw ratio: 2.22-3.67:1

D88-LOZ101

Throw ratio: 3.58-5.38:1

D88-LOZ201

Throw ratio: 5.31-8.26:1

D88-UST01B

Throw ratio: 0.38:1
