Overview

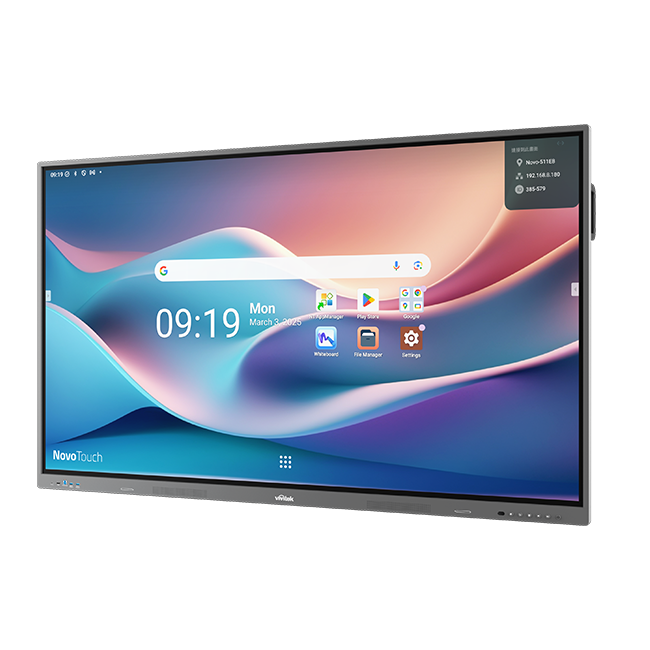

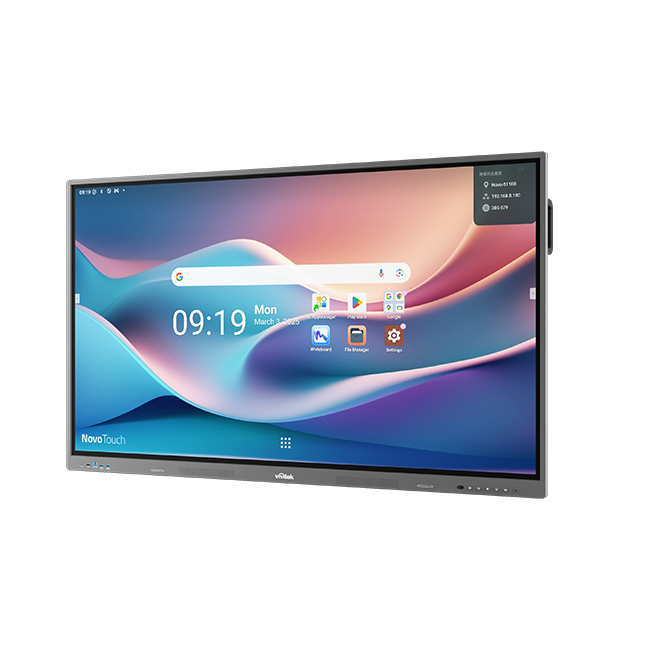

The NovoTouch BK862i is a 4K-UHD collaborative touch display solution for both education and business meetings. This series provides different display sizes with combining whiteboard, wireless collaboration, and digital signage functionalities. Additionally, BK862i supports interactive IR touch technology and TÜV Rheinlan Certified for the best touch and viewing experience.
Key Features
Key Features
Up to 8 participants can be connected and up to 2 can share their screen simultaneously. The BK862i each split screen has 1080p high resolution.
The BK862i supports NT Live Receiver which can has screen duplication across different room over the corporate network for large groups.
The BK862i dual Ethernet ports provide users with the ability to daisy-chain devices, making it possible to connect both the BK2 panel and a computer to the internet, even with only one available port.
Specifications
Specifications
Hardware
Screen Size
86"
Resolution
4K
Brightness cd/m² (typ.)
400
Dynamic Contrast Ratio
1200：1
Installation Orientation
Landscape
Viewing Angle(H/V)
178° / 178°
Daily Operation
16/7
Memory
DDR3 4G
Storage
eMMC 32GB
Speaker
16W x2 (stereo)
Ambient Light Sensor
Yes
Wireless
WiFi 5 & BlueTooth 5.0
Interactivity
Touch 20 points & Writing 10 points
Internet
Dual LAN
Low Blue Light & Flicker Free
Yes
OPS expansion
Standard Intel 80pin (option)
USB C
x1,15W charging, display input
Power Supply
AC 100 - 240V, 50/60Hz
Power Consumption
410W
Dimension
1953 x 90.2 x 1172.3 mm
Weight
63 kg
Software
OS Version
Android™ v13.0
Remote Management Tool
Yes
Google Play Store
Yes
NovoConnect Stage
Yes ( w intel OPS)
Software - Wireless Collaboration
Wireless Presentation
Yes (2 splits)
Screen Recording
Yes
On-Screen Annotation
Yes
White Board
Yes
Miracast
NA
Google Cast
Yes
AirPlay
Yes
BYOM
NA
USB plug-and-play
Yes ( w LauncherPlus)
Software - Digital Signage
Creating / Edit Playlist
Yes
Publish Content
Yes
Scheduling Playback
Yes
Content Management System
Yes
Screen Orientation
Yes
Announced Board
Yes
Social Media (Twitter, Instagram, Facebook)
Yes
YouTube/IP Streaming
Yes
Calendar
Yes
Accessories
Accessories
BK Series
BK Series

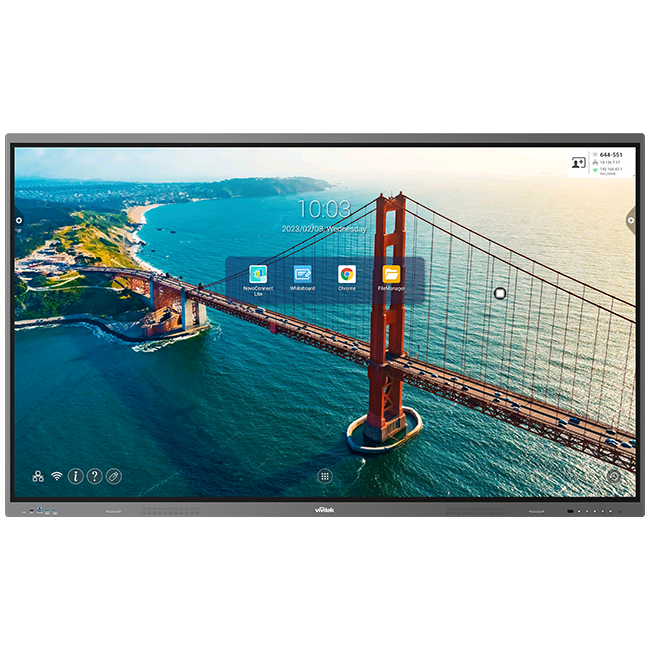

BK752i
4K-UHD （3840 x 2160）
75"

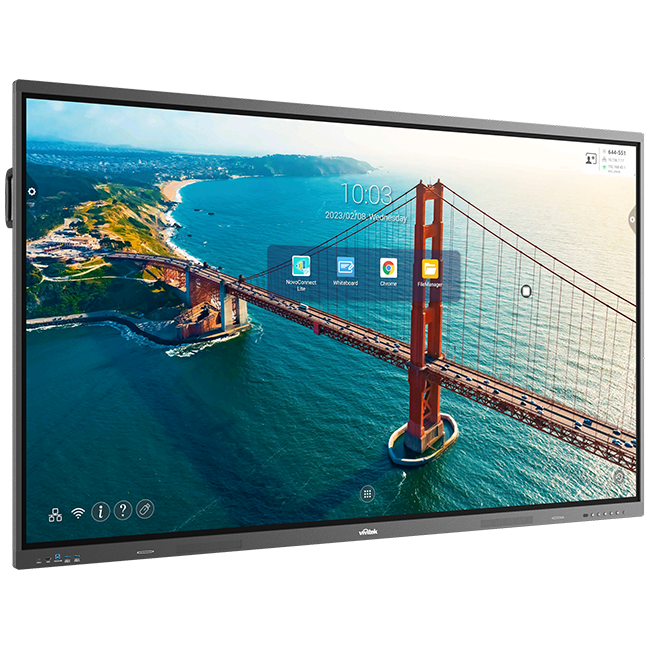

BK652i
4K-UHD （3840 x 2160）
65"
