Vivitek

DH2360Z-ST

Cost-effective portable laser projectors

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

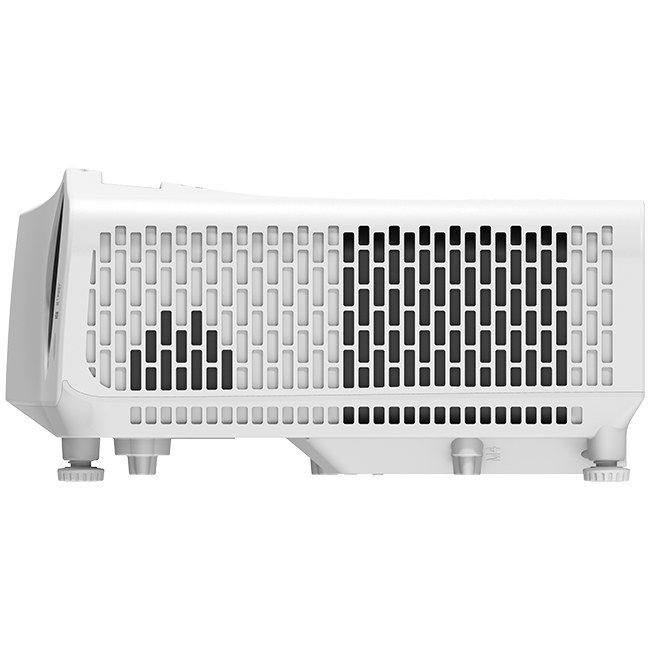

The DH2360Z-ST is cost-effective laser projector weighted only 4.5kg, designed with low cost of ownership and maintenance for up to 30,000hours. Integrated DLP® Darkchip3 and BrilliantColor technology together ensure brilliant pictures, with optimal black levels and vivid, colorful images. The DH2360Z-ST is perfect for education application that require a high brightness, high contrast ratio and flexible installation with H/V keystone, and 4-corner adjustment. The DH2360Z-ST is built-in dual HDMI ports for sufficient connectivity and embedded with a 10W speaker to deliver stunning audio performance.

DH2360Z-ST DH2360Z-ST

Key Features

Key Features

DLP Darkchip3 & BrilliantColor Technology

The DH2360Z-ST supports DLP®chip3 and BrilliantColor™ technologies to ensure brilliant pictures, with optimal black levels and vivid, colorful images with a contrast ratio of 3,000,000:1 for high contrast, accurate, and vibrant colors.

Bright Images in Any Environment

Packed with up to 3,600 lumens of brightness and a high contrast ratio 3,000,000: 1, the DH2360Z-ST provides sharp and bight images in any environment with ambient light.

High Standard Anti-Dust Protection

The optical system, from the laser light source to lens is completely sealed and rated IP5X for protection again dust ingress, ensuring consistent brightness over time with reliable performance and much reduced need for maintenance.

Supports HDR and HDMI 2.0

This DH2360Z-ST of HDR compatible projector is capable of receiving and displaying HDR meta data and can provide a brilliant visual experience with more detail and texture when projected over long distance. With an HDMI 2.0 interface, this projector also supports 4K signals.

Large Image Size

DH2360Z-ST with its short throw design can project up to a 150-inch large and clear image from a short distance to save the space.

Flexible Installation

Support vertical / horizontal keystone correction and 4-corner geometric adjustment, allowing for virtually unlimited mounting flexibility.

Long Lifespan

The DH2360Z-ST projector is used laser light source for a long lifespan of up to 30,000 hours, guaranteeing a long service life which greatly reduces energy consumption and maintenance costs. This laser projector can automatically maintain constant and stable brightness over a long period of time.

Specifications

Specifications

Display

Projection System

1-Chip DLP™ 0.65 inch

Resolution

1080p (1920 x1080)

Light Source

Laser

Optics

Brightness

3,600 lm

Brightness Uniformity

80%

Contrast Ratio

3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Fixed

Zoom Ratio

N/A

Lens Throw Ratio

0.48 : 1

Lens Shift - Horizontal (Full Image Width)

N/A

Offset (Full Image Width)

107%

Geometry Adjustment

Keystone Correction

Yes (H/V), Auto V Keystone

Four Corner Adjustment

Yes

I/O Terminal

HDMI

2.0 x2

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

In x 1

3D Sync

N/A

RJ45

N/A

RS-232

In x1

Wire Remote

N/A

Speaker

10W x1

USB

Type A (Power Only 5V/1.5A) x1 / mini-B (Service) x1

12V Trigger (mini Jack)

N/A

5 BNC

N/A

Audio

Audio-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

195W (Normal) / 155W (Eco)

Standby Power

< 0.5W

Acoustic Noise ±5%

Normal 35dB / Eco 33dB

Dimension ±2%

353 x 290 x 144 mm

Weight ±1kg

4.5 kg

3D Display

Active

24x7 Operation

N/A

Dust Proof*4

Up & Down

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Brightness measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Contrast Ratio base on Full On/Off
Light Source Life: Time until light output declines to 50 %, Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
Altitude: When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.
