Vivitek-Products-DH3665ZN

Vivitek

DH3665ZN

An excellent color performance laser projector ideal for higher education and conference rooms

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

With a high brightness of 7,000 lumens, the DU4871Z is a WUXGA laser projector with diverse connectivity options and is suitable for large spaces, even with high ambient lighting, such as lecture halls or conference rooms. It offers the next generation of advanced laser light source technology and features vibrant true-to-life colors, high brightness, and high contrast to deliver excellent color performance. Designed to meet different installation environments, the DU4871Z has environmentally friendly lamp-free design and features 360° and portrait projection for stable and high-quality projection.

Key Features

Brightness and Color Performance

The DU4871Z features 7,000 lumens of high brightness, 20,000: 1 contrast ratio and offers the next generation of advanced vivid color technology to deliver a perfect image display.

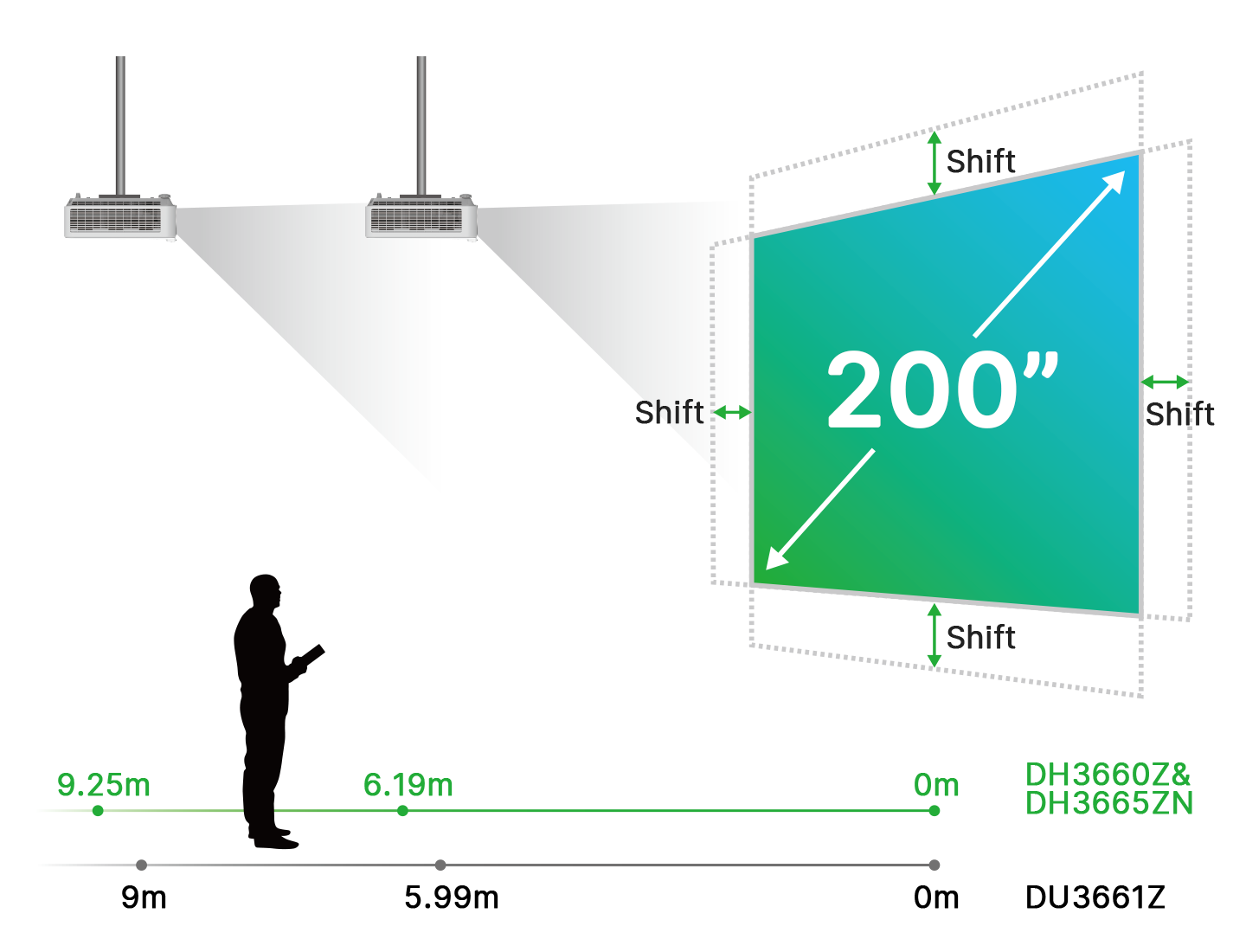

1.5X Zoom Range

The DH3665ZN is equipped with a 1.5X big zoom optical lens and supports a throw ratio of 1.39 to 2.09:1. It can provide flexible projection distance installation in any challenging environments. With the horizontal/ vertical lens shift, even if the projector cannot be placed in the middle position, it can be flexibly adjusted to provide a perfect ratio image.

PJ-Control Tool

Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.Vivitek’s PJ-Control software is a tool for controlling Vivitek projectors. It can be used to manage multiple projectors, helping users control viewing options, settings, and scheduling, and it also allows for the adjustment of display features over a network.

Flexible Installation

Supports 360° no limitation on projection angle, vertical / horizontal keystone, and 4-corner geometric adjustment, allowing for almost unlimited mounting flexibility.

24/7 Operation

Vivtek’s laser light source is good for 30,000 hours of operation in Eco Mode and support continuous 24/7 operation. It delivers high stability and reliability for commercial applications.

Eco Friendly Design

All components and materials in Vivitek’s projectors follow the green guidelines of RoHS. The projector is used laser light source for up to 30,000 hours(Eco Mode), guaranteeing a long service life which greatly reduces energy consumption and maintenance costs.

Specifications

Display

Projection System

1-Chip DLPTM 0.65 inch

Resolution

1080p (1920 x1080)

Light Source

Laser

Optics

Brightness

4,500 lm

Brightness Uniformity

85%

Contrast Ratio

3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Fixed

Zoom Ratio

1.5x

Lens Throw Ratio

1.39~2.09 : 1

Lens Shift - Horizontal (Full Image Width)

N/A

Offset (Full Image Width)

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

I/O Terminal

HDMI

1.4a x2

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

In x1 / Out x1

3D Sync

Out x1

RJ45

LAN x1

RS-232

In x1

Wire Remote

N/A

Speaker

5W x2

USB

Type A (5V/1.5A) x2 mini-B (Service) x1

12V Trigger (mini Jack)

N/A

5 BNC

Audio

Audio-In (RCA) x1 / Audio-In (Mini-Jack) x1 / MIC-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

340W (Normal) / 270W (Eco)

Standby Power

< 0.5W (Network Off)／< 2.0W( Network On)

Acoustic Noise ±5%

Normal 35dB / Eco 33dB

Dimension ±2%

395 x 340 x 135 mm

Weight ±1kg

7 kg

3D Display

Active

24x7 Operation

Yes

Dust Proof*4

IP5X

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%

Brightness measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is average of all products when shipped.
Contrast Ratio base on Full On/Off
Light Source Life: Time until light output declines to 50 %, Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.
Altitude: When using the projector at an altitude lower than 2,700 m (8,858 ft) above sea level, and the operating environment temperature becomes 35 °C (95 °F) or higher, the light output may be reduced to protect the projector.
