Vivitek

DK654

A 4K-UHD display solution for digital signage

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

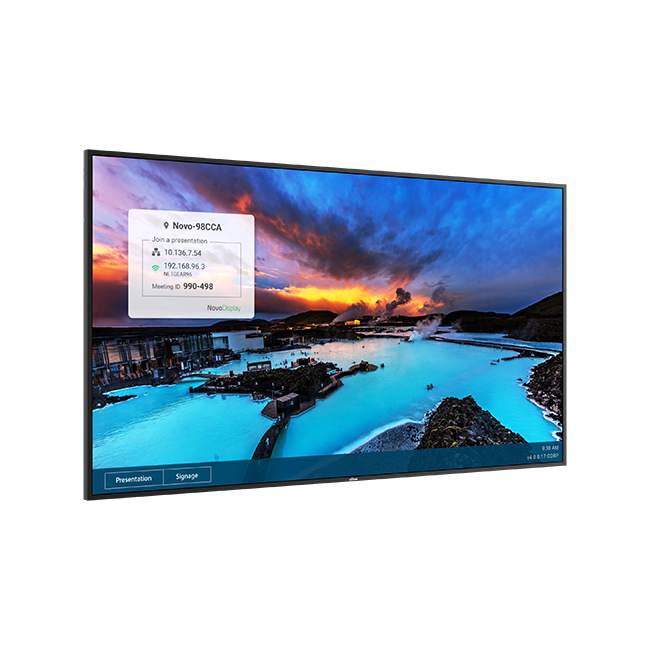

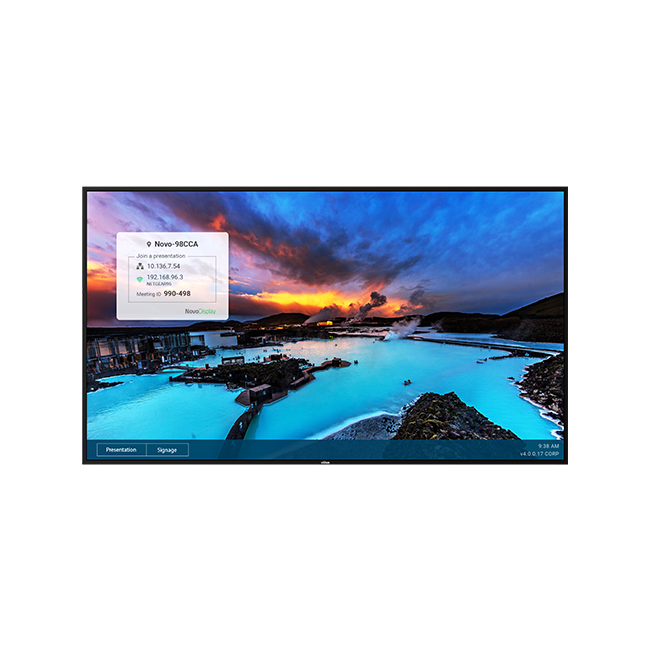

The NovoDisplay DK654 is an Ultra HD 4K large display solution for business digital signage that supports both landscape and portrait display modes. With built-in Digital Signage and Wireless Collaboration, NovoDisplay can easily publish digital signage content or switch to presentation mode for sharing your screen anytime. This series is available for various display sizes, suitable for commercial applications such as hospitality, retail, education and business.

DK654

DK654

Key Features

Key Features

NovoDS

Built-in digital signage capability as an all-in-one digital signage solution, easy to set up and manage via NovoDS Cloud.

NovoDS Cloud

Highly secure protection with two-factor authentication
Rich designer templates
Co-editing among team members
Emergency notifications
Dynamic content including YouTube, FB, IG, etc

NovoConnect

App/Software for wireless collaboration
Up to 64 participants can be connected simultaneously
4 split screens in 1080p resolution

Remote Manager Cloud

Cloud-base Device Management
Firmware update
Remote assist – view and click on the device screen in the cloud
Managing devices by groups

Support Landscape & Portrait Installation

Support 4K video playback in both landscape and portrait mode.

Haze Screen

High brightness - 500cd/m2
The matte material, no reflection under any light source, can perfectly present the content

Specifications

Specifications

Hardware

Screen Size

65"

Resolution

4K

Brightness cd/m² (typ.)

500

Installation Orientation

Portrait / Landscape

Viewing Angle(H/V)

178° / 178°

Daily Operation

24/7

Memory

8GB

Storage

32GB

Speaker

10W x2 (stereo)

Wireless

Wi-Fi 6 & BlueTooth 5.2

Internet

LANx1

OPS expansion

Standard 80pin compliant

Bezel Even

Yes

Software

Remote Management Tool

Yes

Google Play Store

Yes

Software - Wireless Collaboration

Wireless Presentation

Yes (4 splits screen)

Screen Sharing

NT LiveScreen & NT LiveReceriver

Miracast

Yes

Google Cast

Yes

AirPlay

Yes

Software - Digital Signage

Creating / Edit Playlist

Yes

Publish Content

Yes

Scheduling Playback

Yes

Content Management System

Yes

Screen Orientation

Portrait \ Landscape

Announced Board

Yes

Social Media (Twitter, Instagram, Facebook)

Yes

YouTube/IP Streaming

Yes

Calendar

Yes

System

Power Supply

AC 100 - 240V, 50/60Hz

Dimension

1461.4 x 846.9 x 80.4 mm

Net Weight

17.7 kgs

Power Consumption

190W

Documentation

Documentation

Flyer

User Maunal

Quick Start Guide

Accessories

Accessories

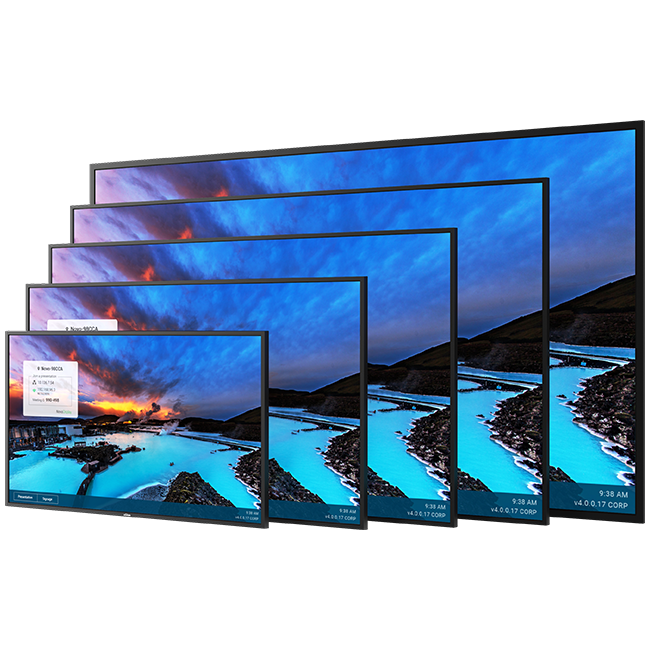

DK Series

DK Series

DK854

DK854

4K-UHD （3840 x 2160）
85

DK754

DK754

4K-UHD （3840 x 2160）
75

DK554

DK554

4K-UHD （3840 x 2160）
55

DK434

DK434

4K-UHD （3840 x 2160）
43
