Vivitek

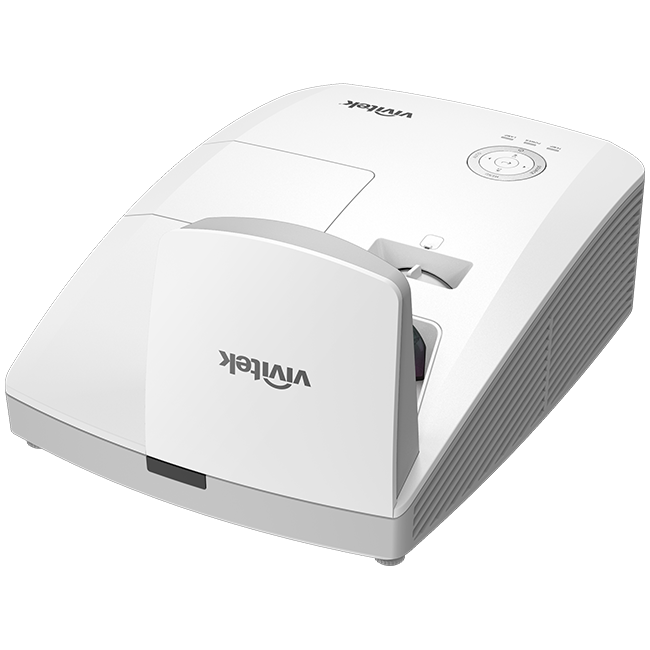

DW771-USTi

Ultra Short Throw Projector with lightweight for education

Overview

Key Features

Specifications

Documentation

Accessories

Overview

Key Features

Specifications

Documentation

Accessories

Overview

The DW771-USTi is an ultra short throw projector with 4K compatible. The Ultra short throw lens can make up to a 100” large image from a short distance. With 3,500 lumens of brightness, 5,000:1 contrast ratio and WXGA resolution ensure clear, stunning and bright projection. The UST projector supports Crestron® RoomView™ for network monitoring and management capabilities. This projector is an ideal projector solution for education environments.

Key Features

Large Image in Small Space

The DW771-USTi with its 0.35:1 ultra-short throw design can project up to a 100-inch large and clear image from a short distance to save the space.

Bright Images in Any Environment

Packed with 3,500 lumens of brightness and a high contrast ratio 5,000: 1, this series provides sharp and bight images in any environment with ambient light.

4K Signal Compatible

The DW771-USTi is a projector capable to accept native 4K signals compatible With built-in HDMI 2.0, supports playback of 4K videos contents and can easily have a detailed and vivid content experience.

Long Lamp Life

With high-efficiency and energy-saving lamp, the projector has a long life span of up to 12,000 hours in Eco mode to reduce lamp replacement times.

Support Crestron RoomView

The DW771-USTi supports Crestron® RoomView™ network monitoring and management control system, which can remotely manage and monitor multiple projectors and set schedules.

Built-in Interactivity

For interactive collaboration and in-class learning, the DW771USTi comes with built-in interactivity support for multi users thanks to two pens or an optional Finger Touch (DT03) Unit with 10 points.

Specifications

Display

Projection System

1-Chip DLPTM 0.65 inch

Resolution

WXGA (1280 x 800)

Light Source

UHP Lamp

Optics

Brightness

3,500 lm

Brightness Uniformity

85%

Contrast Ratio

14,000:1 (Full On/Off)

Light Source Life

5,000 hrs(Normal) ／8,000 hrs (Eco) ／12,000 hrs (Long Eco)

Lens Type

Fixed

Zoom Ratio

1.2x

Lens Throw Ratio

0.35 : 1

Lens Shift - Horizontal (Full Image Width)

N/A

Offset (Full Image Width)

140%

Geometry Adjustment

Keystone Correction

Yes (V)

Four Corner Adjustment

N/A

I/O Terminal

HDMI

2.0 x2

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

In x 1 / Out x1

3D Sync

N/A

RJ45

LAN x1

RS-232

In x1

Wire Remote

N/A

Speaker

10W x1

USB

Type A (Power Only 5V/1.5A) x1 / Type B (Service) x1 / mini-B (Interactive) x1

12V Trigger (mini Jack)

N/A

5 BNC

Audio

Audio-In (RCA) x1 / Audio-In (Mini-Jack) x1 / MIC-In (Mini-Jack) x1 / Audio-Out (Mini-Jack) x1

System

Power Supply

AC 100-240V 50/60Hz

Power Consumption ±5%

330W (Normal) / 250W (Eco)

Standby Power

< 0.5W (Network Off), < 2.0W( Network On)

Acoustic Noise ±5%

Normal 32dB / Eco 29dB

Dimension ±2%

287.7 x 374.5 x 122.6 mm

Weight ±1kg

5 kg

3D Display

Active / Passive

24x7 Operation

N/A

Dust Proof*4

N/A

Operation Oreinetation

Up & Down (lamp life not gurantee)

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%
