Vivitek

DK653

A 4K-UHD display solution for digital signage

Overview

Key Features

Specifications

Documentation

Accessories

Video

Overview

Key Features

Specifications

Documentation

Accessories

Video

Overview

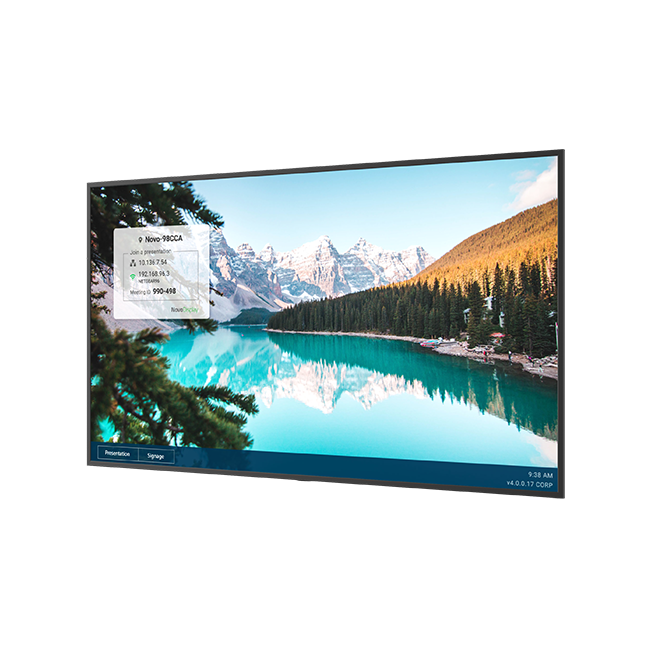

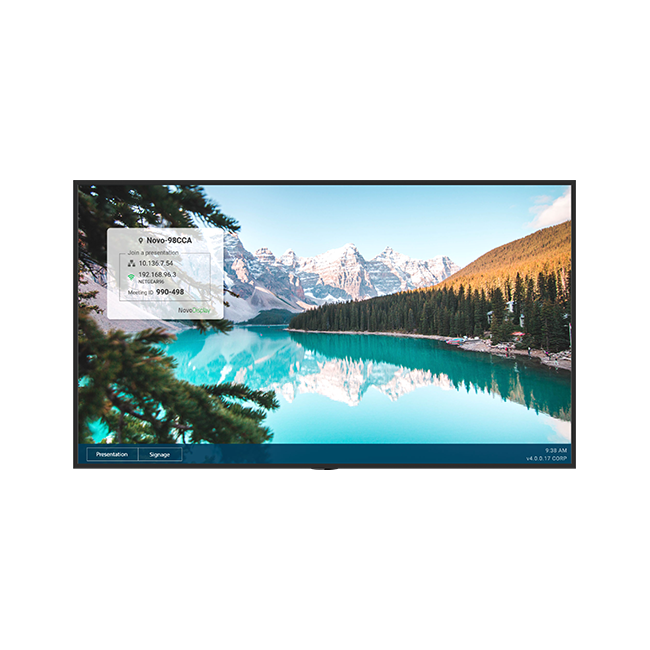

The NovoDisplay DK653 is an Ultra HD 4K large display solution for business digital signage that supports both landscape and portrait display modes. With built-in NovoConnect Wireless Collaboration and NovoDS Digital Signage, this series can easily share your screen or switch to digital signage mode and show company messages or promotional announcements anytime. This series is available for various display sizes which is suitable for commercial applications such as hospitality, retail, education and business.

Key Features

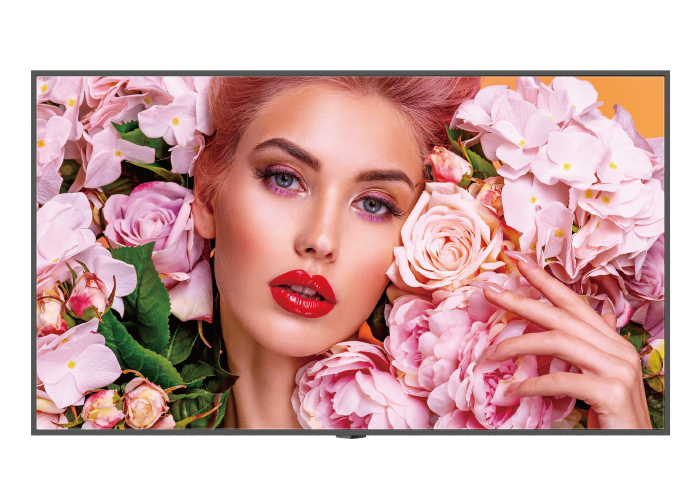

4K-UHD Resolution

The DK653 features 65” display size with 4K Ultra-HD (3,840 x 2,160) resolution to deliver outstanding details and stunning visuals.

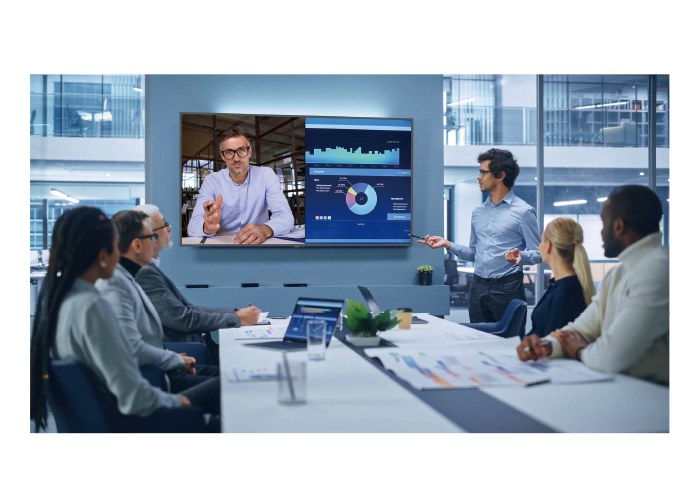

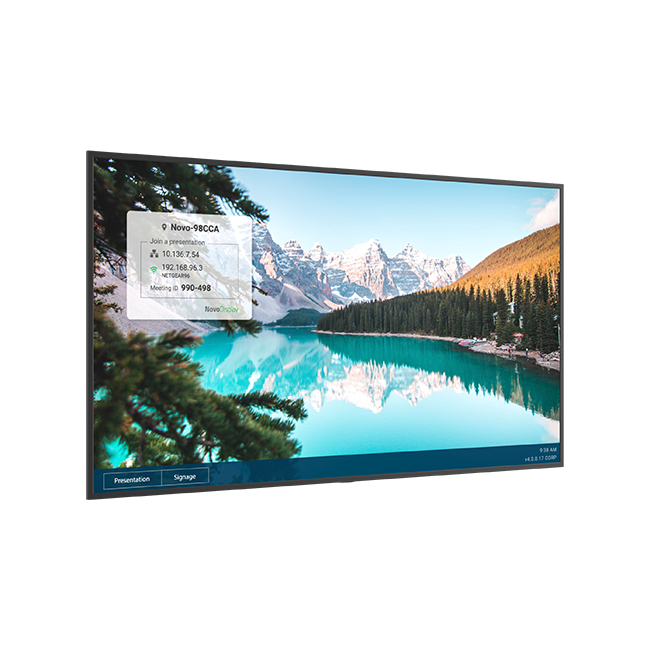

Wireless Collaboration

The DK653 has built-in NovoConnect wireless presentation and collaborative system for cable-free and hassle-free presenting in the classroom or in office.

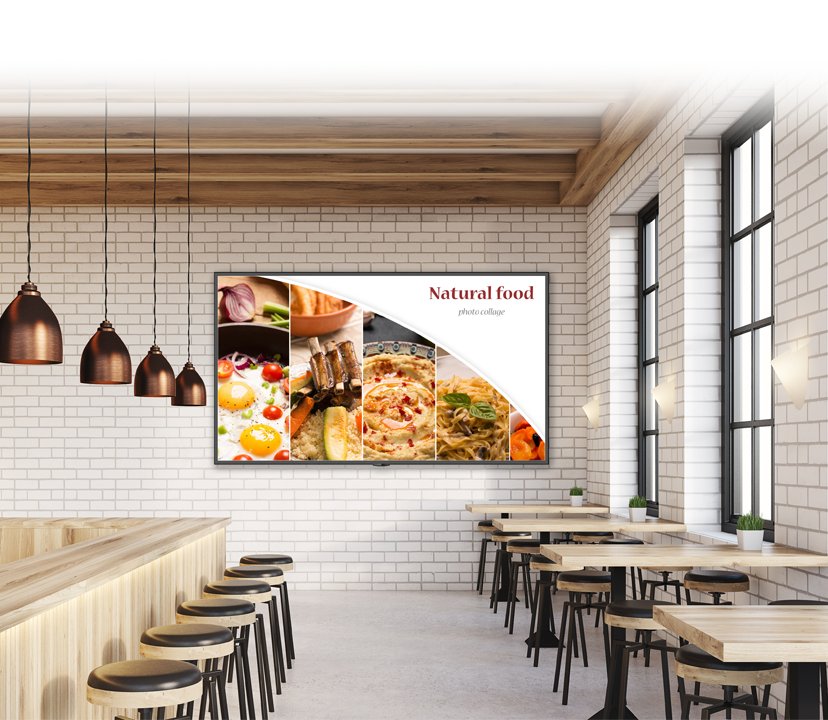

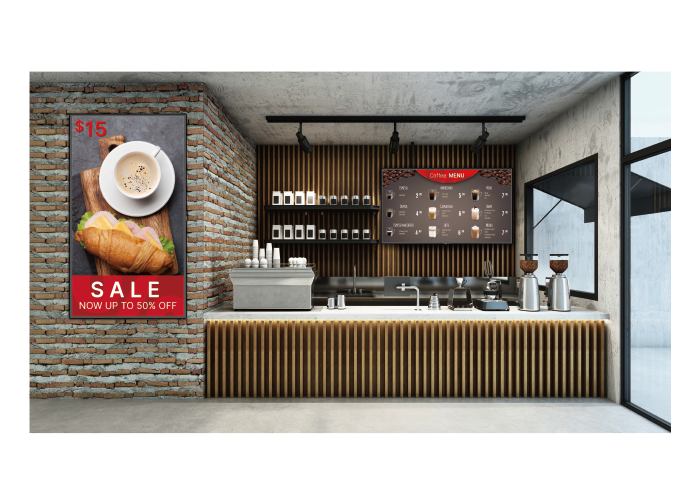

Digital Signage

Built-in NovoDS capability as an all-in-one digital signage solution, easy to set up and manage via Windows/Mac software or NovoDS.com Cloud service.

24/7 Operation

The DK653 is designed for 24/7 nonstop operation with amazing 50,000 life hours. Delivers high stability and reliability for commercial applications

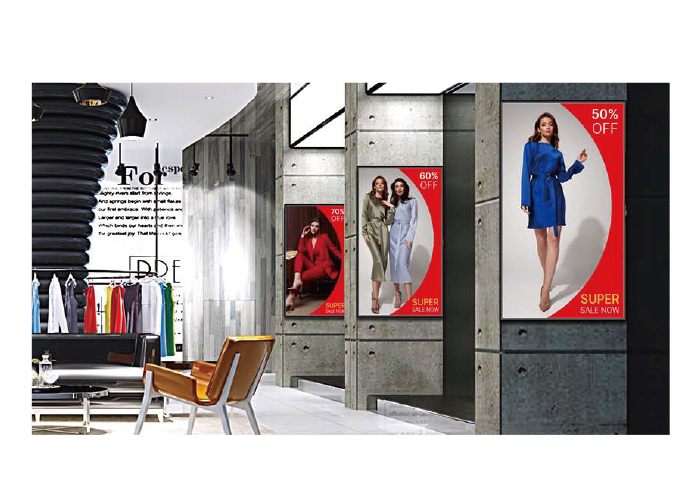

Support Landscape & Portrait Installation

The DK653 features easy to install and can support landscape and portrait mode to l various business needs.

Backlit D-LED Technology

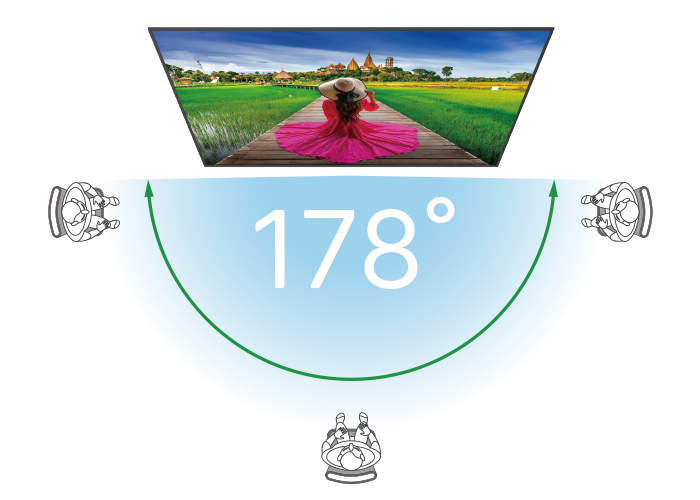

Backlit D-LED (IPS panel) technology offers brighter pictures, flawless colors, richer textures, and extra wide viewing angels (178˚/ 178˚) with an incredibly sharp and crisp images.

Specifications

Hardware

Screen Size

65"

Resolution

Panel Surface

Brightness cd/m² (typ.)

500

Installation Orientation

Portrait \ Landscape

Viewing Angle(H/V)

178° / 178°

Daily Operation

24/7

Memory

DDR3 4G

Storage

eMMC 32GB

Speaker

10W x2 (stereo)

Ambient Light Sensor

Yes

Wireless

WiFi 5 \ BlueTooth 4.2

Interactivity

Internet

LANx1

Low Blue Light & Flicker Free

OPS expansion

Android 80pin, VKG-G1 (option)

Bezel Even

Yes

USB C

Software

Remote Management Tool

Yes

Google Play Store

Novo Stage

Software - Wireless Collaboration

Wireless Presentation

Yes (2 splits \ 4 splits w OPS)

Screen Recording

Screen Sharing

NT LiveReceiver only（w OPS）

On-Screen Annotation

White Board

Miracast

Yes (w OPS)

Google Cast

Yes

AirPlay

Yes

BYOM

USB plug-and-play

Yes ( w LauncherPlus)

Software - Digital Signage

Creating / Edit Playlist

Yes

Publish Content

Yes

Scheduling Playback

Yes

Content Management System

Screen Orientation

Portrait \ Landscape

Announced Board

Yes

Social Media (Twitter, Instagram, Facebook)

Yes

YouTube/IP Streaming

Yes

Calendar

Yes

System

Power Supply

AC 100 - 240V, 50/60Hz

Power Consumption

≤220W

Dimension

1,461.4 x 846.9 x 80.4mm

Weight

17.6kg

Documentation

Flyer

Download

User Maunal

Download

Quick Start Guide

Download

Accessories

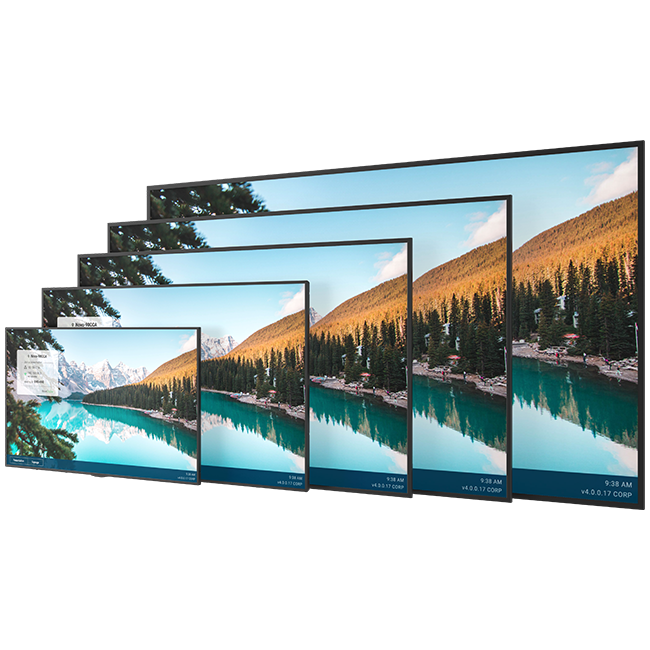

DK Series

DK863

4K-UHD （3840 x 2160）
86"

DK753

4K-UHD （3840 x 2160）
75"

DK553

4K-UHD （3840 x 2160）
55"

DK433

4K-UHD （3840 x 2160）
43"
